Bagi yang kesulitan mencari service mode tv tcl saya kasih caranya cukup mudah bisa menggunakan remot asli bisa juga menggunakan remot hp, selamat mencoba dijamin work untuk type ic chroma TDA 11135PS/N3/3

service mode tv TCL:
cara 1:
* tekan dan tahan vol(-) sampai 00 pada panel televisi.
* tekan DISPLAY pada remote.
* akan muncul "D" pada layar bagian kanan atas layar.
* untuk navigasi tekan angka pada remote.
* untuk merubah nilai tekan Vol -/+
* perubahan semua data otomatis disimpan dalam memori.
* untuk keluar tekan power off.
cara 2: * TCL 21M83.
* menggunakan ic TDA 11135PS/N3/3.
* tekan MENU pada remote.
* tekan submenu Kontras.
* tekan angka 9735.
* akan muncul "P" pada kiri bawah layar.
* untuk navigasi tekan angka pada remote.
* untuk merubah nilai tekan Vol -/+.
* untuk perubahan akan tersimpan otomatis.
* untuk keluar tekan power off

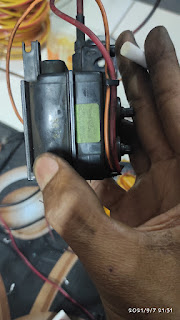

kumpulan persamaan playback tv

.



1. Data Persamaan Flyback TV Akari

Persamaan Flyback 1

C _ B+ _ 125V _ ABL _ NC _ GND _ 185V _ 46V _ H _ NC _ 16,5V
FCK – 14A033
FSV – 20A001
FSV – 14A001

Persamaan Flyback 2

C _ 180 _ B+ _ gnd _ nc _ 24 _ nc _ abl _ Ht _ afc
FUY-20C009

Persamaan Flyback 3

COL _ 180V _ B+ _ GND _ NC _ 24V _ NC _ ABL _ HT _ AFC
FUY-20C009


2. FLY BACK TV AKARI FUJITEC

Persamaan Flyback TV AKARI

COL _ B+115V _ NC _ AFC _ GND _ H _ ABL _ NC
14″ BSC22 – 01N401
20″ BSC24 – 01N40TA
14″ BSC25 – 1194
21″ BSC25 – 4803T
14″ BSC22 – 2007 (B+125)
20″ BSC25-N0803A


3. PERSAMAAN DATA FLYBACK TV AKIRA

Persamaan Flyback TV Akira 1

COL _ B+115V _ GND _ 185V _ H _ ABL _ GND _ 16V _ NC _ 24V
14″ JF0501 – 1901
21″ BSC23 – N0114

Persamaan Flyback TV Akira 2

COL _ B+115V _ +14V _ -14V _ GND _ H _ AFC _ ABL _ NC _ 185V
21″ JF0501 – 19959
21″ BSC25 – 0235A
BSC25-4004A
BSC25-N 0103
BSC24-01N4004U

Persamaan Flyback TV Akira 3

Col _ B+125v _ Afc/Nc _ -12v _ +12v _ Gnd _ H _ Abl _ Gnd _ 180v
CT-29TK9Ae
JF0501-2202

Persamaan Flyback TV Akira 4

Fungsi Col B+110 _ GND _ 180 _ HT _ ABL _ GND _ 16 _ NC _ 26
No. Pin 1 2 3 4 5 6 7 8 9 10
Data Travo Flyback JF0501-1901

Persamaan Flyback TV Akira 5

COL_B+115V_+14V_-14V_GND_H_AFC_ABL_NC_185V
BSC25-4004A
BSC25-N 0103
BSC24-01N4004U
21″ JF0501 – 19959

Persamaan Flyback TV Akira 6

Col_B+125v_Afc/Nc_-12v_+12v_Gnd_H_Abl_Gnd_180v
JF0501-2202

Persamaan Flyback TV Akira 7

COL_B+115V_GND_185V_H_ABL_GND_16V_NC_24V
14″ JF0501 – 1901
21″ BSC23 – N0114

Data Travo Flyback BSC25-05N2135C

No. Pin 1 2 3 4 5 6 7 8 9 10

Persamaan Flyback TV Akira 8

Fungsi Col _ B+115 _ 16 _ AFC _ GND _ HT _ ABL _ NP _ 180 _ NP
BSC22-0106
BSC25-05N1418
BSC25-3504V


4. TV AKIRA SLIM

Persamaan Flyback TV Akira

Col _ 180v _ B+130v _ Gnd _ Nc(14v) _ 25v _ Nc(Gnd) _ Abl _ H _ Inner
29″ BSC29-N2477


5. TV AKIRA FUJITEC

Persamaan Flyback 1

COL _ B+115V _ NC _ AFC _ GND _ H _ ABL _ 180V
IC 8893CPBNG
21″ BSC25 – 05N2135H
21″ BSC25 – N0379
21″ BSC25 – 3604V

Persamaan Flyback 2

COL _ B+115V _ 24v _ AFC _ GND _ H _ ABL _ 180V
BSC22-68F03
BSC25-N0449

Persamaan Flyback 3

COL_B+115V_NC_AFC_GND_H_ABL_180V
21″ BSC25 – N0379
21″ BSC25 – 3604V
21″ BSC25 – 0235A
21″ BSC25 – 4803T1
21″ BSC25 – 05N2135H

Persamaan Flyback 4

COL_B+115V_24v_AFC_GND_H_ABL_180V
BSC22-68F03
BSC25-N0449
BSC25-Z601A


6. TV CHINA

Persamaan Flyback 1
BSC 25 Z 603F
BSC 25 – 4813A
BSC 25 – N1003A
BSC25 – N0608

TP1 _ COL _ TP2 _ B+115v _ TP3 _ TP4 _ GND _ H _ ABL _ NC(180V)

Persamaan Flyback 2
BSC 25 – 2004PR
COL _ B+115v _ NC _ AFC _ GND _ H _ ABL _ NC _ TP1 _ TP2
BSC24-01N4014K
BSC25-T1010A

T1_COL_T2_B+115v_T3_T4_GND_H_ABL_180V

Persamaan Flyback 3
29″ BSC26 – 3606A

Col _ B+115V _ NC _ AFC _ GND _ H _ ABL _ T1 _ T2 _ T3

Persamaan Flyback 4
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313
BSC25-F1125A

TP1 _ COL _ TP2 _ B+115v _ TP3 _ TP4 _ GND _ H _ ABL _ AFC

Persamaan Flyback 5
BSC 22-01-06
BSC 25-48
BSC 25-4803
BSC 24-01N362

C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc

Persamaan Flyback 6
29″ BSC28 – N2329

Col _ TP2 _ B+115V _ GND _ 185V _ NC _ NC _ ABL _ H _ AFC

Persamaan Flyback 7
BSC 24-01N4014K
BSC 25-T1010A
BSC 25-09N21A
BSC 25-05N2110A
BSC 25-09N20E

Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v

Data Travo Flyback BCS28-2198
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ 180
Persamaan :
BSC24-01N4006EV
BSC25-09N20E
BSC25-T1010A
BSC25-Z603F
BSC24-01N4006EVRBSC24-N40G1

Data Travo Flyback BSC25-N0211
No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ H1 _ AFC _ GND _ HT _ ABL _ H2 _ H3
Persamaan : BSC25-05N2120R

Data Travo Flyback BSC25-F1125A
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Persamaan :
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313

Data Travo Flyback BSC25-N0313
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Persamaan :
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-F1125A

Data Travo Flyback BSC25-N3604
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ H1 _ H2

Data Travo Flyback BSC24-01N40K
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ NC _ B+110 _ GND _ AFC _ NC _ ABL _ HT _ NC _ NC

Data Travo Flyback FCM-21A004
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ 195 _ AFC _ ABL _ GND _ 14 _ NC _ 24

Data Travo Flyback JF0501-91802
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+130 _ GND _ NC _ 24 _ NC _ ABL _ HT _ NC
Persamaan :
154-177B
154-064P
FCK-14B047
JF0501-1206
154-374A
6174Z-6238L

Data Travo Flyback BCS25-4004U
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ H1 _ H2 _ GND _ NC _ 12.5 _ B+140 _ ABL _ HT _ AFC

Data Travo Flyback BSC24-N40G1
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Persamaan :
BSC24-01N4006EV
BSC25-09N20E
BSC25-T1010A
BSC25-Z603F
BSC24-01N4006EVRBCS28-2198

Data Travo Flyback BSC25-3504V
No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ 180
Persamaan :
BSC22-0106
BSC25-05N1418
BSC25-05N2135C

Data Travo Flyback BSC24-09G
No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC

Data Travo Flyback BSC25-N0449
No. Pin 1 2 3 4 5 6 7 8
Fungsi Col _ B+110 _ 26 _ AFC _ GND _ HT _ ABL _ 180
Persamaan : BSC22-68F03

Data Travo Flyback BSC22-68F03
No. Pin 1 2 3 4 5 6 7 8
Fungsi Col _ B+110 _ 26 _ AFC _ GND _ HT _ ABL _ 180
Persamaan : BSC25-N0449


7. TV China Merk DIAMOND

Col_B+115_40v_14v_Gnd_Afc_Abl_Ht_180v_Nc
BSC24 – 2231HC


8. TV China Lainnya

TP1_COL_TP2_B+115v_TP3_TP4_GND_H_ABL_NC(180V)
BSC 25 Z 603F
BSC 25 – 4813A
BSC 25 – N1003A
BSC25 – N0608

TP1_COL_TP2_B+115v_TP3_TP4_GND_H_ABL_AFC
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313
BSC25-F1125A

COL_B+115v_NC_AFC_GND_H_ABL_NC_TP1_TP2
BSC 25 – 2004PR

T1_COL_T2_B+115v_T3_T4_GND_H_ABL_180V
BSC24-01N4014K
BSC25-T1010A

Col_B+115V_NC_AFC_GND_H_ABL_T1_T2_T3
29″ BSC26 – 3606A

Col_TP2_B+115V_GND_185V_NC_NC_ABL_H_AFC
29″ BSC28 – N2329
29″ BSC29 – T6018N

Tp1_Col_Tp2_B+_Nc_Tp3_Gnd_Ht_Abl_180v
29″ BSC26 – N0570
29″ BSC26 – N0670
29″ BSC27 – KLX29
29″ BSC26 – 01N


9. TV SANKEN

Persamaan Flyback Col _ B+115 _ +14V _ -14V _ Gnd _ Ht _ Afc _ Abl _ Nc _ 180v
21″ BSC24-01N4004U
JF0501 – 19959
BSC25 – 0235A
BSC25-N 0103

Data Travo Flyback FSV20A099
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 15 _ 24 _ HT _ 45 _ 180 _ GND _ NC _ ABL _ B+125 _ H


10. FLYBACK TV AIWA

COL _ B+115V _ 24V _ GND _ 185V _ H _ ABL _ GND _ AFC _ 12V
84-L83-606-01
FTK 14B011

Col _ B+115v _ +17v _ Afc _ Gnd _ H _ Abl _ Nc _ 180v _ -17v
ASATRON SLIM
21″ BSC25-N1089D


11. TV DETRON

Persamaan Flyback TV Detron 24v _ 14v _ B+115V _ H _ AFC _ ABL _ GND _ 185V _ NC _ COL
14″ 154 – 164F
20″ 154 – 165D
20″ JF0501-1212


12. TV SANSUI

Persamaan Flyback COL _ B+115V _ 185V _ 16V _ 24V _ H _ GND _ ABL _ AFC _ NC
JF0501 -1206
JF0501-1204


13. TV SONY

COL _ B+200V _ H _ GND _ -13V _ GND _ +13V _ NC _ ABL
8-598-858-00
8-598-831-00
8-598-811
1-453-284-11


14. TV SONY TRINITRON

Persamaan Flyback H1 _ H2 _ 180v _ B+ _ Col _ 14V _ Abl _ Nc _ 26v _ Nc _ Gnd
29″ 1-439-423-32

B+110 _ Col _ 6.5V _ Gnd _ H _Abl _ -12V _ Gnd _ 180v _+12V
14″ 6174Z – 8006A


15. TV PHILIPS

Persamaan Flyback: Col_B+125v_180v_Afc_H_8v_12v_ABL_45v_Gnd
29″ JF0501 – 9185
BSC25 – N2319
BSC25 – N2911


16. TV HITACHI FUJIAN

Persamaan Flyback TV HITACHI Col _ B+115 _ Nc _ Nc _ 25v _ 12v _ Abl _ Ht _ Gnd _ 180v
BSC25 – 0820


17. TV GOLDSTAR

Persamaan Flyback 1
154-177B
154-064P
6174-8004A (kadang 12V/16V gak ada)
6174Z-6040X
MF6549

COL _ 185V _ B+115V _ GND _ 16V _ 24V _ 40V _ ABL _ H _ AFC

Persamaan Flyback 2
154-177E

COL _ 185V _ B+90v _ BOOST UP _ 25V _ 12V _ GND _ ABL _ H _ AFC

JVC
21″ BSC25 – 0262
COL _ B+115V _ AFC _ NC _ 24V _ GND _ H _ ABL _ 185V _ GND

JVC AV20NX
21″ JF0501 – 3241 / QQ0189 – 001
Col _ B+115v _ AFC _ -12V _ +12V _ Gnd _ HT _ ABL _ 185v _ GnD

GOLDSTAR 154-177B
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H 180 B+110 GND 12 24 40 ABL HT AFC
Persamaan : 154-064P FCK-14B047 JF0501-1206 JF0501-91802 154-374A 6174Z-6238L


18. FLYBACK TV TOSHIBA

Persamaan Flyback 1
14″ TFB 4067 BD
20″ TFB 4122 BD
20″ TFB 4122 HY
21″ TFB 4125CH
21″ TFB 4213AG (Flat)
29″ TFB 4086A

COL _ B+115V _ 185V _ GND _ NC _ 24V _ 12V _ ABL _ H _ AFC

Persamaan Flyback 2
TFB 4125 DY
TFB 4125 HY

C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc

Data Travo Flyback TFB4122BD
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 185 _ GND _ NC _ 26 _ 12 _ ABL _ HT _ AFT
Persamaan : TFB4125CH

Data Travo Flyback TFB4125CH
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 185 _ GND _ NC _ 26 _ 12 _ ABL _ HT _ AFC
Persamaan : TFB4122BD


19. TV POLYTRON

Persamaan Flyback 1

Col _ B+ _ gnd _ 185 _ nc _ Ht _ Nc _ abl _ +12 _ -12
FCM-20B061N

Persamaan Flyback 2

COL_B+115V_GND_NC_185V_H_NC(25v)_ABL_+12V_-12V(AFC)
20″ FCM 20 B 061N
21″JF 0501 – 19577
21″ JF0501 – 19584

Col_B+115V_Gnd_185v_Nc_H_25v_Bcl_12v_Afc
21″ JF0501-195913
21″ FTK-21R011UN

Persamaan Flyback 3
JF0601-19577
Col _ B+ _ gnd _ 200v _ nc _ Ht _ nc _ abl _ +12 _ -12

Data Travo Flyback FCM2015HE
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi NC _ NC _ GND _ 180 _ 15 _ HT _ 24 _ ABL _ B+110 _ H
Persamaan :
FCK14A006
FCM14A032

Data Travo Flyback FCK14A006
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi NC _ NC _ GND _ 180 _ 15 _ HT _ 24 _ ABL _ B+110 _ H
Persamaan :
FCM2015HE
FCM14A032

Data Travo Flyback FCM-20B061N
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ 180 _ NC _ HT _ NC _ ABL _ 12 _ -12
Persamaan : JF0601-19577


20. TV POLYTRON DIGITEC

Persamaan Flyback 1
21″ JF0501-195913
21″ FTK-21R011UN

Col _ B+115V _ Gnd _ 185v _ Nc _ H _ 25v _ Bcl _ 12v _ Afc

Persamaan Flyback 2
20″ FCM 20 B 061N
21″JF 0501- 19577

Col _ B+115V _ Gnd _ NC _ 185V _ H _ NC _ ABL _ +12V _-12V
21. TV POLYTRON LAMA

Nc _ Nc _ GND _ 185V _ 16V _ H _ 24V _ ABL _ B+115V _ COL
14″ FCK 14A006
20″ FCM2015H
20″ FTK21R002


22. TV SANYO

Persamaan Flyback:
21″ L 40 B 15300 / L40B17100
JF0501-32639 (SANYO SLIM 21″)

Col _ B+115V _ Nc _ 185V _ AFC _ ABL _ Nc _ LOW B _ H _ GND
23. SANYO SLIM FLAT 29″

Persamaan Flyback: BSC26-2629S part no: ILB4L40B07500

Col_B+140v_Nc_Video 185v_Afc_Abl_Nc_Low B_H_Gnd
Tr Hor D2634


24. SAMSUNG FLAT SLIM 29″

Persamaan Flyback Col _ Nc _ B+125V _ Nc _ 200V _ Gnd _ H _ -16,5V _ +16,5V _ ABL
JF0501 – 91911 (FQH29A003) (B+125v)
21″ SLIM FQH21A004 / BSC25-0217G / AA26-00305A / FUH29A001B (S) (B+120/125V)
25. FLYBACK TV SAMSUNG

Persamaan Flyback 1
FSV 14A004
FSV14A001
FSV20A001

16,5V _ AFC _ H _ 24/40V _ 180V _ GND _ NC _ ABL _ B+125V _ COL

Persamaan Flyback 2
FTK-14A004P

C _ B+125v _ ABL _ Nc _ Gnd _ 180v _ 24v _ Ht _ AFC _ 16,5

Persamaan Flyback 3
FOK14A001
FSV-14A004C
FSV-14A004H
FSA-38031M
FSA 173 B
AA26-002101A

+16,5V _ 24V _ H _ -16V,5 _ 185V _ GND _ NC _ ABL _ B+125V _ COL

Persamaan Flyback 4

16,5V_AFC_H_24/40V_180V_GND_NC_ABL_B+125V_COL
FSV 14A004
FSV14A001
FSV20A001

Col_NC_B+123V_NC_200V_Gnd_H_-16,5V_+16,5V_ABL
14/21″ Flat FOK14B001
Col_Nc_B+130v_Nc(widht)_200v_Gnd_H_-16,5v_+16,5v_Abl
21″ FUH29A001A (S)

Persamaan Flyback TV SAMSUNG SLIM

COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL
21″ Slim FQH21A004
21″ Slim BSC25-0217G / AA26-00305A / FUH29A001B (S) (B+120/125V)
21″ Slim BSC25-0218N / AA26-00317A
29″ Flat FUH29A001 (B+ 135v)
29″ Slim JF0501 – 91911 (FQH29A003) (B+125v)

SAMSUNG FOK14A001
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16.5 NC HT -16.5 200 GND NC ABL B+130 H
Persamaan : AA26-002101A FSV-14A004C

Data Travo Flyback FSV-14A004C
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16.5 _ NC _ HT _ -16.5 _ 185 _ GND _ NC _ ABL _ B+125 _ Col
Persamaan :
FOK14A001
AA26-002101A

Data Travo Flyback FCM2014FL
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16 _ AFC _ HT _ 24 _ 180 _ GND _ BOST _ ABL _ B+110 _ Col
Persamaan : FCM14A025

Data Travo Flyback FCM14A025
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16 _ AFC _ HT _ 24 _ 180 _ GND _ BOST _ ABL _ B+110 H
Persamaan : FCM2014FL


26. SAMSUNG Flat

Col _ NC _ B+123V _ NC _ 200V _ Gnd _ H _ -16,5V _ +16,5V _ ABL
FOK14B001
FOK14B001


27. SHARP

Persamaan Flyback 1
21″ F0147PE

Col _ B+115V _ GND _ 24V _ 12V _ AFC _ 185V _ GND _ H _ ABL

Persamaan Flyback 2
29″ FA100WJ / FA116WJ

Col _ B+125v _ Gnd _ +14v _ -14v _ Nc _ 180v _ Gnd _ H _ Abl

Persamaan Flyback 3
14″ F0193 / 21″F0194

Col _ B+115V _ GND _ 40V _ 12V _ AFC _ 185V _ GND _ H _ ABL

Persamaan Flyback 4
14″ F0067PE
20″ F0069PE

Col _ B+115V _ 24V _ 16V _ NC _ AFC _ GND _ H _ 185V _ ABL

Persamaan Flyback 5

COL_B+115V_24V_16V_NC_AFC_GND_H_185V_ABL
14″ F0067PE
20″ F0069PE

COL_B+115V_GND_24V_12V_AFC_185V_GND_H_ABL
21″ F0147PE

Data Travo Flyback FA137WJZZ
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ GND _ 24 _ NC _ AFC _ 180 _ GND _ HT _ ABL
Persamaan : BSC25-0217B

Data Travo Flyback BSC25-0217B
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ GND _ 24 _ NC _ AFC _ 180 _ GND _ HT _ ABL
Persamaan : FA137WJZZ

Data Travo Flyback F0147PE-M
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
BCS21-2647
F0101KM-SA
F0102KM
F02299PE-B
F0141PE-M

SHARP F0193PEN1-SA
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H B+115 GND 45 12 AFC 180 GND HT ABL
Persamaan :
F0194PEN1-SA F0147PE-M BCS21-2647 F0101KM-SA F0102KM F02299PE-B F0141PE-M

Data Travo Flyback F0141PE-M
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0101KM-SA
F0102KMF02299PE-B

Data Flyback TV SHARP
Kode Koneksi : 12-3467-589-10
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _
Gns_ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL

Data Travo Flyback F02299PE-B
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ NC _ 24 _ AFC _ 180 _ GND _ HT _ ABL
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0101KM-SA
F0102KM
F0141PE-M

Data Travo Flyback F0102KM
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0101KM-SA
F02299PE-B
F0141PE-M

Data Travo Flyback F0101KM-SA
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0102KM
F02299PE-B
F0141PE-M


28. SHARP PICOLLO / Expression / Alexander

Persamaan Flyback 1
14″ BSC26 – 2631S / FA060 WJ – SA
21″ JF0501-32601 / FA071WJ – A
21″ BSC25-0232A / FA104WJZZ

Col _ B+125V _ GND _ 24V _ 12V _ AFC _ 185V _ GND _ H _ ABL

Persamaan Flyback 2

COL_B+125V_GND_24V(NC)_12V_AFC(-12v)_185V_GND_H_ABL
14″ BSC26-2631S / FA060 WJ (Box Silver)
14″ BSC21-2672S/ FA084WJ-B
21″ BSC21-2647S / F0229PE / FA061WJ (Box Silver)
21″ JF0501-32601 / FA071WJ – A
21″ BSC25-0232A / FA104WJZZ
21″ BSC24-2688S / FA113WJ-B
21″ FA099WJ/ JF0501-32601

Col_B+125v_Gnd_Nc(30V)_+14v_AFC(-14v)_180v_Gnd_H_Abl
29″ FA100WJ / FA116WJ


29. TV SHARP Wonder/ Universe

Col_B+115V_GND_40V_12V_AFC_185V_GND_H_ABL
14″ F0193 / 21″F0194


30. LG SUPER SLIM

COL _ 185V _ B+115V _ GND _ Nc _ 24V _ Nc _ ABL _ H _ AFC
6174913002A
BSC24-3366J

Col_B+115V_+14V_-14V_200V(Video)_Gnd_Inner_26V_Abl_H
21″ BSC25-N0363
29″ BSC26-N2138


31. TV LG

Persamaan Flyback 1
29″ 6174Z – 5003A
29″ BSC28 – N2334

Col _ B+115v _ +14v _ -14v _ 200v _ Gnd _ Nc _ 28v _ ABL _ H

Persamaan Flyback 2
20″: 6174 – 6006E

Col _ 185v _ B+115V _ Gnd _ -14v _ +14v _ Gnd _ ABL _ H _ AFC

Persamaan Flyback 3
21″ 6174V-6006H (Flat & Super Slim)
21″ BSC24-3366J (Super Slim)

COL _ 185V _ B+115V _ GND _ Nc _ 24V _ Nc _ ABL _ H _ AFC

Data Travo Flyback 6174V-6006H
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Persamaan :
6174V-6006E
BSC23-N0121

Data Travo Flyback BSC23-N0121
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Persamaan :
6174V-6006H
6174V-6006E

Data Travo Flyback 6174V-6006E
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Persamaan :
6174V-6006H
BSC23-N0121

Data Travo Flyback 6174Z-6238L
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 200 _ B+140 _ GND _ 13 _ -13 _ 28 _ ABL _ HT _ AFC
Persamaan :
154-177B 154-064P
FCK-14B047
JF0501-1206
JF0501-91802

Data Travo Flyback 6174Z-6005U
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+120 _ 14 _ -14 _ 204 _ 28 _ NC _ ABL _ HT _ NC

Data Travo Flyback 6174V-6006V
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ NC _ 24 _ NC _ ABL _ HT _ AFC

Data Travo Flyback 154-374A
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 200 _ B+125 _ GND _ 16 _ 26 _ 45 _ ABL _ HT _ AFC
Persamaan :
154-177B
154-064P FCK-14B047
JF0501-1206
JF0501-91802
6174Z-6238L


32. PANASONIC

Persamaan Flyback 1
TLF14695F/Alpha Gold
TLF 15610 F
TLF 15611 F
KFS60844

Col _ B+ _ Gnd _ PS sink – _ 25v _ Ht _ 185v _ Abl _ Nc _ PS sink+

Persamaan Flyback 2
ZTF N82014B

Col _ B+140v _ Nc _ +16v _ Gnd _ H _ Gnd _ ABL _ -16v _ 180v

Persamaan Flyback 3
20″ TLF 4N052

Col _ B+115v _ Nc _ 24v _ H _ 180v _ Gnd _ Gnd (R2W 1 ohm)_16v_ABL

Persamaan Flyback 4
21″ G4GAM3F2

Col _ B+90v _ 180v _ Nc _ Nc _ Nc _ Nc _ Abl _ Gnd _ Ht
154-064P
154-177B
FCK-14B047

C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
154 – 132A
154 – 132C

C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v
154 189H
154 277C
FCM 20B027

Col _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc
8-598-858–00
8-598-811

Col _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ Nc _ Abl
DCF 2217J

Col _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater
F 0101KM-SA
F 0141 PE-M

Col _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl
FCK 14A006
FCM 2015HE
FCM 14A032

Col _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl
FCK 1411 L 01
FCM 14A025

Col _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
FCG 2045 BL

Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ Col _ Abl _ 175v _ 24v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M

Col – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater
FSV – 20A001
FCK – 14A033
FSV – 14A001

Col _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5
JF 0501-1206

Col _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
MC – FBC-015
LCE CF0854

Col _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
K 148 TC

Col – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc

Data Travo Flyback TLF4G503F
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+90 _ NC _ 24 _ HT _ 185 _ GND _ AFC _ 16 _ ABL
Persamaan :
TLF15644F1
TLF4N052

Data Travo Flyback TLF4N052
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+90 _ NC _ 24 _ HT _ 180 _ GND _ AFC _ 16 _ ABL
Persamaan :
TLF15644F1
TLF4G503F

PANASONIC TLF15644F1
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H B+90 NC 24 HT 185 GND GND 16 ABL
Persamaan : TLF4N052 TLF4G503F


33. TV FUJITEC

Persamaan Flyback: COL _ B+115V _ 180V _ 16V _ 24V _ H _ GND _ ABL _ AFC _ NC
BSC22 – 2314H
JF0501-1903
FCM14A032
KFS 60844


34. TV KONKA CHINA

Persamaan Flyback 1 : Col _ 185v _ B+115 _ Gnd _ Nc _ Nc _ Abl _ Ht _ Gnd _ Afc
21″ BSC25-0146

Persamaan Flyback 2 : COL _ 185V _ B+115V _ GND _ AFC _ 14V _ ABL _ H _ NC _ NC
14″ BSC25-2023S
14″ BSC25 – 0106
21″ BSC25-2666S
20″ BSC25-0111

Data Travo Flyback BCS25-N1603
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi C _ 180 _ B+108 _ GND _ AFC _ 12.5 _ ABL _ HT _ NP _ NP
Persamaan :
BSC25-0113
BSC25-023D
BSC25-2678S

Data Travo Flyback BSC25-2678S
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ AFC _ 12 _ ABL _ HT _ NC _ NC
Persamaan :
BCS25-N1603
BSC25-0113
BSC25-023D
BSC25-2678S


35. TV TCL

Data persamaan flyback TV TCL

BSC 66G 185V_COL_AFC_B+115V_NC_NC_NC_GND_NC_H
21″ BSC25 – 0299D
21″ BSC25 – 0273F
21″ JF0501-1914
BSC25 – 0231
21″ BSC25-0284C

185V_COL_AFC_B+115V_12V_24V_ABL_GND_NC_H
BSC25-0211
JF0501-1909A
JF0501-1214

Col_B+_NC_NC_NC_AFC_GND_ABL_200V_HT
21″ BSC25 – 0252S

Data Travo Flyback JF0501-1914
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 180 _ Col _ AFC _ B+110 _ 12 _ 24 _ ABL _ GND _ NC _ HT
Digunakan Pada TV : TCL
Persamaan : BSC25-0231

Data Travo Flyback BSC25-0231
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 180 _ Col _ AFC _ B+110 _ 12 _ 24 _ ABL _ GND _ NC _ HT
Digunakan Pada TV : TCL
Persamaan : JF0501-1914


36. TV SANYO

Data Travo Flyback L40B9001
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ NC _ AFC _ GND _ HT _ GND _ ABL _ NC _ 180
Persamaan : L40B05500

Data Travo Flyback L40B05500
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ NC _ AFC _ GND _ HT _ GND _ ABL _ NC _ 180
Persamaan : L40B9001


37. TV SOLIDTRON

Data Travo Flyback FSA16012M
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Persamaan :
DCF-2077D DCF-2077A DCF-1577

Data Travo Flyback DCF-1577
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Persamaan :
DCF-2077D
DCF-2077A
FSA16012M
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Persamaan :
DCF-2077A
DCF-1577
FSA16012M

Data Travo Flyback FCK-14B047
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 24 _ 40 _ ABL _ HT _ AFC
Persamaan :
154-177B
154-064P
JF0501-1206
JF0501-91802
154-374A
6174Z-6238L


38. TV HITACHI

Data Travo Flyback 2435521
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ GND _ 25 _ 200 _ B+110 _ HT _ ABL _ 14 _ NC _ NC


39. TV ASATRON Slim

Col_B+115v_+17v_Afc_Gnd_H_Abl_Nc_180v_-17v
21″ BSC25-N1089D


40. TV AIWA 14/20″

COL_B+115V_24V_GND_185V_H_ABL_GND_AFC_12V
84-L83-606-01
FTK 14B011


41. TV SANSUI

Data Travo Flyback JF0501-1206
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 180 _ 16 _ 24 _ HT _ GND _ ABL _ AFC _ NC
Persamaan :
154-177B
154-064P
FCK-14B047
JF0501-91802
154-374A
6174Z-6238L


42. TV GOLDSTAR / LG / AKARI / INTEL

COL_185V_B+115V_GND_16V_24V_40V_ABL_H_AFC
154 – 177B
154 – 064P
154 – 374C (29 inch)
6174 – 8004A
6174Z – 6040X
MF6549
FCM – 20B058
COL_185V_B+90v_BOOST UP_25V_12V_GND_ABL_H_AFC
154 -177E


43. TV Merk JVC

COL_B+115V_AFC_NC_24V_GND_H_ABL_185V_ GND
21″ BSC25 – 0262
50. TV JVC AV20NX

Col_B+115v_ AFC_-12V_+12V_Gnd_HT_ABL_185v_Gnd
21″ JF0501 – 3241 / QQ0189 – 001


44. TV FUJITEC Lama

COL_B+115V_180V_16V_24V_H_GND_ABL_AFC_NC
BSC22 – 2314H
JF0501-1903
FCM14A032
KFS 60844


45. TV HITACHI FUJIAN

Col_B+115_Nc_Nc_25v_12v_Abl_Ht_Gnd_180v
BSC25 – 0820

Cara paksa on psu tv led dan plasma
