Firmware led dan lcd

service tv bandung
Sanyo Led..

1. SANYO LE 22S600
2. SANYO AQUA LE32S6500
3. SANYO LE 32S500
4. SANYO LE24S630

TV LED SHARP

1. SHARP 24LE155 USB INSTALER
2. SHARP LC32M300
3. SHARP 24LE157I
4. SHARP LC 32DX2881BZ
5. SHARP 32LE260M
6. SHARP LC32LE2601

TV LED COOCAA

1. COOCAA 24E58
2. COOCAA 32E360
3. COOCAA 32E20W
4. COOCAA 29E50
5. COOCAA 32E68E
6. COOCAA 32E36

LED POLYTRON

1. POLYTRON PLD32D552
2. POLYTRON PLM32B51
3. POLYTRON PLD40T552
4. POLYTRON PLD32T700
5. POLYTRON PLD42D750

SAMSUNG LED LCD

1. SAMSUNG UA32FH4003RX
2. SAMSUNG FS43F4500AR
3. SAMSUNG LT24D310AR
4. SAMSUNG AU32J5100
5. SAMSUNG UA32F4000

LED LG

1. LG 32LD310
2. LG32LB550A
3. LG 22LS2100
4. LG 32LG30R
5. LG 43LH540

Bila data diatas belum tersedia bisa request lewat WhatsApp 083821228114 atau klik Disini

CARA MENONAKTIFKAN PIN PROTEK BACKLIGHTE TV LCD LED

Melumpuhkan ic protek backlight Nonaktifkan
melindungi driver inverter BL:

1. ic AT1741
– pin 15 jumper LED ke GND
2. ic BA9741
– pin 15 jumper LED ke GND
3. ic BD9211F
– pin 14 jumper R 4k7 ke gnd
4. ic BD9215AFV
– pin 15 jumper R 10K GROUND
5. ic BD9222FV
– pin 13 jumper LED ke GROUND
6. ic BD9240
– pin 15 jumper R10K ke GROUND
7. ic BD9270F
– pin 13 jumper R10K ke GND
8. ic BD9275F
– pin 11 jumper R 1K ke gnd
9. ic BD9276EFV
– pin 35 jumper LED ke gnd
10. ic BD9766CVF
– pin 20 jumper LED ke GROUND
11. ic BD9766VF
– pin 20 jumper LED ke gnd
12. ic BD9777
– pin 14 jumper R 10K ke GROUND
13. ic bD9882F
– pin 14 jumper LED ke GROUND
14. ic BD9893F
– pin 10 jumper R 82K ke gnd
15. ic BD9896
– pin 3 jumper LED ke gnd
16. ic BD9897F
– pin 22 jumper LED ke gnd
17. ic BD9897FS
– pin 17 jumper LED ke gnd
18. ic BI3101A
– pin 16 jumper R 470 ohm ke gnd
19. ic BIT 3101
– pin 2 & 15 jumper LED ATAU 390K-820K ke gnd
20. ic BIT3102B
– pin 14 jumper R 47K ke gnd
21. ic BIT3105
– pin 19 jumper LED ke gnd
22. ic BIT3193
– pin 5 jumper LED ke gnd
23. ic BIT3251 / 52
– pin 5 jumper ke gnd
24. ic BIT3713
– pin 5 jumper LED ke gnd
25. ic DT8211
– pin 9 jumper R 47K ke gnd
26. ic FA3629
– pin 15 & 16 jumper
27. ic FA3630
– pin 7 & 10 jumper
28. ic FAN7316
– pin 17 jumper LED ke gnd
29. ic iLN816G
– pin 8 jumper R 10K ke gnd
30. ic KA7500
– pin 1 & 16 jumper
31. ic KA7500B
– jumper pin 15 & 16
32. ic KHO803A
-vpin 5 jumper

– pin 6 jumper R 82K ke gnd
33. ic LM2901 – pin 3 jumper LED ke gnd
34. ic MAX8722
– pin 4 dijumper langsung ke gnd
35. ic MP1006
– pin 6 jumper R 10K ke gnd
36. ic MP1007ES
– pin 4 jumper langsung ke gnd
37 ic MP1008
– pin 4 jumper R 10K ke gnd
38. ic MP1009
– pin 5 jumper langsung ke gnd
39. ic MP1038EY
– pin jumper 2 & 11
40. ic MP1060EF
– pin 3 jumper LED ke gnd
41. ic MP3810
– pin 6 jumper R 82K ke gnd
42. ic MSC1692
– pin 4 jumper R 220K ke gnd
43. ic oB3362RP
– pin 16 jumper R 22K ke gnd
44. ic OZ5508G / GN / N
45. ic OZ964 – pin 4 jumper LED ke gnd
46. ​​ic OZ9643
– pin 1 jumper 20K ke gnd
47. ic OZ965
– pin 4 & 5 jumper
48. ic OZ972GN
– pin 8 jumper LED ke gnd
49. ic OZ9910
– pin 5 jumper R 82K ke gnd
50. ic OZ9919GN
– pin 8 junper R 10K ke gnd
51. ic OZ9937
– pin 14 jumper R 47K ke gnd
52. ic OZ9938
– pin 3 jumper R 10K ke gnd
53. ic OZ9938GN
– pin 3 melompat ke gnd
54. ic OZ9938Q
– pin 3 jumper R 10K ke gnd
54. ic OZ9939GN
– pin 3 jumper R 100K ke gnd
55. ic OZ9966SN
– pin 15 jumper R 10K ke gnd
56. ic OZ9972 (24-PIN) – pin 20 jumper R 1K ke gnd
57. ic OZ9976 – pin 11 jumper R 10K ke gnd
58. ic OZL68GN
– pin 4 jumper LED ke gnd
59. icO ZL68GN
– pin jumper 4 & 7
60. ic OZT1060GN
– pin 1 jumper LED ke gnd
61. ic SEM2005
– pin 1 jumpe LED ke gnd
62. ic SEM2005
– pin 1 jumper R 82K ke gnd
63. ic SEM2006
– pin 5 jumper ke gnd
64. ic SEM2107
– pin 21 jumper LED ke gnf
65. ic SS1091ASN
– pin 19 jumper LED ke gnd
66. ic TA9687GN
– pin 12 jumper R 47K ke gnd
67. ic TL1451
– pin 15 jumper ke gnd
68. ic ‌TL494
– jumper 1 & 16
69.ic OZ964AGN sop 16
– Pin 2 jumper ke gnd
Mudah2an bermanfaat

Tags:OZ960, OZ964, Oz9938, OZ9976, OZ9966, BIT3193, FAN7314, AP3041M-G1, AT1741S, BA9741 F, TL1451, BA9741, BD9766VF, BIT3102A, BIT3102b, BIT3713, FAN7311, FAN7314/ BN44-00182C, INL837GL, MP1008, OZ99361.

OZ9928SN,OZ9937GN, OZ9937, QZ9902CGN, OZ971SN, OZ9939GN, OZ9925GN, OZ972GNc, Oz9919GN, QZ9938GN, QZ9910, OZT1060GN, OZL68GNOZ9972, OZ9972ASN, OZ5508G / N, OZ9643n, BD9897, BD9897F, BD9883, BD9240, BD9276EPF, BD9884VF, BD9882F, BD9211F, BD9261PF, BD9777,
BD9896, BD9222FV, BD9215AFV, BD9275F, BD9828, BD9270F, BD9397EFV, BD9470EFV, TA9687GN, LX1691A,
MP1009, MP10072E, MP1038, MP1008 pin 4(FT ), MP1038EY, MP1027EF, MP1007E, MP10073ES, OzL68GL, OzT1060GL, Oz9938, Oz  9937, Oz  9966SN, SEM2005, SEM2005, SEM 2006, SEM 2107, OB3350cp

SKEMA TV LED LCD CRT LENGKAP

service tv bandung

SKEMA TV LED LCD CRT LENGKAP

LG  LED.

32LN5100 DONWLOAD

32LB620B DONWLOAD

32LM5800 DONWLOAD

32MP58HQ DONWLOAD

39LN5120 DONWLOAD

SAMSUNG PLASMA

PL42B450B DONWLOAD

POLYTRON

29N6NRP DONWLOAD

POLYTRON T 5112 DONWLOAD

SKEMA TV CRT SHARP

SILAHKAN DONWLOAD SAJA 100 SKEMA CRT SHARP

LINK DONWLOAD

Sumber:
 http//:www.servistvled.com

Mi max carging

Skema carger aki auto cut

Skema carger aki auto cut monggo yg lagi membutuhkan

Sharp lc32l407I tegangan turun

service tv bandung
Sharp lcd lc 32l407I matot
Cek&ricek ukur 3.3v di area bios ngan kaluar 1.2v kapaksa kudu mapay jalan satapak neangan tersangkana ukur bari di urut ti dc to dc 3.3v bari dipotongan jalur neangan tersangka panasaran buka pendingin ukuran hiji2 c tina jalur 3.3v kapanggih we ieu tersangka utamana cabut weh coba colok ac ukur deui bijil we 3.3v mulus pisan tingali layar bray we hurung,,,
Tos sakieu we nya cape ngetikna

Penting: kadang kerusakan sama tpi penanganan beda intinya cek tegangan dengan teliti

kumpulan fireware tv led,lcd

Berikut beberapa kumpulan firmware untuk LED LCD DAN PLASMA TV, semoga bermanfaat.

1. LG
2. SHARP
3. SAMSUNG
4. TOSHIBA
5. CHANGHONG
6. POLYTRON
7. PANASONIC
8. SANYO

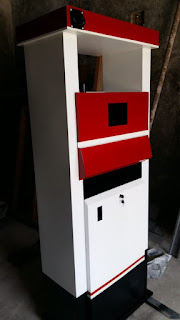

jual cassing pom mini murah bandung

Jual cassing pom mini dan unit satu dan dua nozele portable dan tanam siap kirim dalam dan luar kota,
contoh barang yang belum jadi dan yang udah finising:



Untuk pemesanan dan harga bisa langsung menghubungi

http://bit.ly/083821228114
