CARA MENONAKTIFKAN PIN PROTEK BACKLIGHTE TV LCD LED

Melumpuhkan ic protek backlight Nonaktifkan
melindungi driver inverter BL:

1. ic AT1741
– pin 15 jumper LED ke GND
2. ic BA9741
– pin 15 jumper LED ke GND
3. ic BD9211F
– pin 14 jumper R 4k7 ke gnd
4. ic BD9215AFV
– pin 15 jumper R 10K GROUND
5. ic BD9222FV
– pin 13 jumper LED ke GROUND
6. ic BD9240
– pin 15 jumper R10K ke GROUND
7. ic BD9270F
– pin 13 jumper R10K ke GND
8. ic BD9275F
– pin 11 jumper R 1K ke gnd
9. ic BD9276EFV
– pin 35 jumper LED ke gnd
10. ic BD9766CVF
– pin 20 jumper LED ke GROUND
11. ic BD9766VF
– pin 20 jumper LED ke gnd
12. ic BD9777
– pin 14 jumper R 10K ke GROUND
13. ic bD9882F
– pin 14 jumper LED ke GROUND
14. ic BD9893F
– pin 10 jumper R 82K ke gnd
15. ic BD9896
– pin 3 jumper LED ke gnd
16. ic BD9897F
– pin 22 jumper LED ke gnd
17. ic BD9897FS
– pin 17 jumper LED ke gnd
18. ic BI3101A
– pin 16 jumper R 470 ohm ke gnd
19. ic BIT 3101
– pin 2 & 15 jumper LED ATAU 390K-820K ke gnd
20. ic BIT3102B
– pin 14 jumper R 47K ke gnd
21. ic BIT3105
– pin 19 jumper LED ke gnd
22. ic BIT3193
– pin 5 jumper LED ke gnd
23. ic BIT3251 / 52
– pin 5 jumper ke gnd
24. ic BIT3713
– pin 5 jumper LED ke gnd
25. ic DT8211
– pin 9 jumper R 47K ke gnd
26. ic FA3629
– pin 15 & 16 jumper
27. ic FA3630
– pin 7 & 10 jumper
28. ic FAN7316
– pin 17 jumper LED ke gnd
29. ic iLN816G
– pin 8 jumper R 10K ke gnd
30. ic KA7500
– pin 1 & 16 jumper
31. ic KA7500B
– jumper pin 15 & 16
32. ic KHO803A
-vpin 5 jumper

– pin 6 jumper R 82K ke gnd
33. ic LM2901 – pin 3 jumper LED ke gnd
34. ic MAX8722
– pin 4 dijumper langsung ke gnd
35. ic MP1006
– pin 6 jumper R 10K ke gnd
36. ic MP1007ES
– pin 4 jumper langsung ke gnd
37 ic MP1008
– pin 4 jumper R 10K ke gnd
38. ic MP1009
– pin 5 jumper langsung ke gnd
39. ic MP1038EY
– pin jumper 2 & 11
40. ic MP1060EF
– pin 3 jumper LED ke gnd
41. ic MP3810
– pin 6 jumper R 82K ke gnd
42. ic MSC1692
– pin 4 jumper R 220K ke gnd
43. ic oB3362RP
– pin 16 jumper R 22K ke gnd
44. ic OZ5508G / GN / N
45. ic OZ964 – pin 4 jumper LED ke gnd
46. ic OZ9643
– pin 1 jumper 20K ke gnd
47. ic OZ965
– pin 4 & 5 jumper
48. ic OZ972GN
– pin 8 jumper LED ke gnd
49. ic OZ9910
– pin 5 jumper R 82K ke gnd
50. ic OZ9919GN
– pin 8 junper R 10K ke gnd
51. ic OZ9937
– pin 14 jumper R 47K ke gnd
52. ic OZ9938
– pin 3 jumper R 10K ke gnd
53. ic OZ9938GN
– pin 3 melompat ke gnd
54. ic OZ9938Q
– pin 3 jumper R 10K ke gnd
54. ic OZ9939GN
– pin 3 jumper R 100K ke gnd
55. ic OZ9966SN
– pin 15 jumper R 10K ke gnd
56. ic OZ9972 (24-PIN) – pin 20 jumper R 1K ke gnd
57. ic OZ9976 – pin 11 jumper R 10K ke gnd
58. ic OZL68GN
– pin 4 jumper LED ke gnd
59. icO ZL68GN
– pin jumper 4 & 7
60. ic OZT1060GN
– pin 1 jumper LED ke gnd
61. ic SEM2005
– pin 1 jumpe LED ke gnd
62. ic SEM2005
– pin 1 jumper R 82K ke gnd
63. ic SEM2006
– pin 5 jumper ke gnd
64. ic SEM2107
– pin 21 jumper LED ke gnf
65. ic SS1091ASN
– pin 19 jumper LED ke gnd
66. ic TA9687GN
– pin 12 jumper R 47K ke gnd
67. ic TL1451
– pin 15 jumper ke gnd
68. ic ‌TL494
– jumper 1 & 16
69.ic OZ964AGN sop 16
– Pin 2 jumper ke gnd
Mudah2an bermanfaat

Tags:OZ960, OZ964, Oz9938, OZ9976, OZ9966, BIT3193, FAN7314, AP3041M-G1, AT1741S, BA9741 F, TL1451, BA9741, BD9766VF, BIT3102A, BIT3102b, BIT3713, FAN7311, FAN7314/ BN44-00182C, INL837GL, MP1008, OZ99361.

OZ9928SN,OZ9937GN, OZ9937, QZ9902CGN, OZ971SN, OZ9939GN, OZ9925GN, OZ972GNc, Oz9919GN, QZ9938GN, QZ9910, OZT1060GN, OZL68GNOZ9972, OZ9972ASN, OZ5508G / N, OZ9643n, BD9897, BD9897F, BD9883, BD9240, BD9276EPF, BD9884VF, BD9882F, BD9211F, BD9261PF, BD9777,
BD9896, BD9222FV, BD9215AFV, BD9275F, BD9828, BD9270F, BD9397EFV, BD9470EFV, TA9687GN, LX1691A,
MP1009, MP10072E, MP1038, MP1008 pin 4(FT ), MP1038EY, MP1027EF, MP1007E, MP10073ES, OzL68GL, OzT1060GL, Oz9938, Oz 9937, Oz 9966SN, SEM2005, SEM2005, SEM 2006, SEM 2107, OB3350cp

SKEMA TV LED LCD CRT LENGKAP

service tv bandung

SKEMA TV LED LCD CRT LENGKAP

LG LED.

32LN5100 DONWLOAD

32LB620B DONWLOAD

32LM5800 DONWLOAD

32MP58HQ DONWLOAD

39LN5120 DONWLOAD

SAMSUNG PLASMA

PL42B450B DONWLOAD

POLYTRON

29N6NRP DONWLOAD

POLYTRON T 5112 DONWLOAD

SKEMA TV CRT SHARP

SILAHKAN DONWLOAD SAJA 100 SKEMA CRT SHARP

LINK DONWLOAD

Sumber:
http//:www.servistvled.com

Selasa, 19 Maret 2019

Mi max carging

Skema carger aki auto cut

Skema carger aki auto cut monggo yg lagi membutuhkan

Minggu, 17 Maret 2019

Sharp lc32l407I tegangan turun

service tv bandung
Sharp lcd lc 32l407I matot
Cek&ricek ukur 3.3v di area bios ngan kaluar 1.2v kapaksa kudu mapay jalan satapak neangan tersangkana ukur bari di urut ti dc to dc 3.3v bari dipotongan jalur neangan tersangka panasaran buka pendingin ukuran hiji2 c tina jalur 3.3v kapanggih we ieu tersangka utamana cabut weh coba colok ac ukur deui bijil we 3.3v mulus pisan tingali layar bray we hurung,,,
Tos sakieu we nya cape ngetikna

Penting: kadang kerusakan sama tpi penanganan beda intinya cek tegangan dengan teliti

Senin, 04 Maret 2019

kumpulan fireware tv led,lcd

Berikut beberapa kumpulan firmware untuk LED LCD DAN PLASMA TV, semoga bermanfaat.

1. LG
2. SHARP
3. SAMSUNG
4. TOSHIBA
5. CHANGHONG
6. POLYTRON
7. PANASONIC
8. SANYO

jual cassing pom mini murah bandung

Jual cassing pom mini dan unit satu dan dua nozele portable dan tanam siap kirim dalam dan luar kota,
contoh barang yang belum jadi dan yang udah finising:

Untuk pemesanan dan harga bisa langsung menghubungi

http://bit.ly/083821228114

Senin, 18 Februari 2019

Data persamaan playback, pin kaki playback

Akari / FUJITEC China

- 14 "BSC 22 - 01N401
- 14 "BSC25 - 1194
- 20/21 "BSC25 - 4803T
- 14 "BSC22 - 2007 (B +125)
- 20 "BSC25-N0803A
COL_B +115 V_NC_AFC_GND_H_ABL_NC

AKIRA
- 14 "JF0501 - 1901
- 21 "BSC23 - N0114
COL_B +115 V_GND_185V_H_ABL_GND_16V_NC_24V

AKIRA Vert +14 v dan-14v

- 21 "JF0501 - 19959
- 21 "BSC25 - 0235A
- BSC25-4004A
- BSC25-N 0103
- BSC24-01N4004U
COL_B +115 V_ +14 V_-14V_GND_H_AFC_ABL_NC_185V

AKIRA CT-29TK9Ae

- JF0501-2202

Col_B +125 v_Afc/Nc_-12v_ +12 v_Gnd_H_Abl_Gnd_180v

AKIRA / FUJITEC IC8893CPBNG ......
- 21 "BSC25 - 05N2135H
- 21 "BSC25 - N0379
- 21 "BSC25 - 3604V
COL_B +115 V_NC_AFC_GND_H_ABL_180V

- BSC22-68F03
- BSC25-N0449
COL_B +115 V_24v_AFC_GND_H_ABL_180VAIWA 14/20 "
- 84-L83-606-01
- FTK 14B011
COL_B +115 V_24V _ GND_185V_H_ABL_GND_AFC_12V

DETRON

- 14 "154 - 164F
- 20 "154 - 165D
24v_ 14v_B +115 V_H_AFC_ABL_GND_185V_NC_COL

SHARP

- 14 "F0067PE
- 20 "F0069PE
COL_B +115 V_24V_16V_NC_AFC_GND_H_185V_ABL

- 21 "F0147PE
COL_B +115 V_GND_24V_12V_AFC_185V_GND_H_ABL

- 14 "F0193 / 21" F0194
Col_B +115 V_GND_40V_12V_AFC_185V_GND_H_ABL

SHARP picollo & ALEXANDER

- 14 "BSC26 - 2631S / FA060 WJ - SA
- 21 "JF0501-32601 / FA071WJ – A

- 21 “ FA 132 WJ-ZZ
- 21" FA113 WJ ZZ / BSC 24-2688S
- 14" BSC 25-0216J
- 14" FA 154 WJ ZZ

COL_B +125 V_GND_24V_12V_AFC_185V_GND_H_ABL

- 29 "FA100WJ / FA116WJ
Col_B +125 v_Gnd_ +14 v_-14v_Nc_180v_Gnd_H_Abl

GOLDSTAR / LG / Akari / INTEL

- 154-177B
- 154-064P
- 6174-8004A (kadang 12V/16V gak ada)
- 6174Z-6040X
COL_185V_B +115 V_GND_16V_24V_40V_ABL_H_AFC

- 154-177E
COL_185V_B +90 v_BOOST UP_25V_12V_GND_ABL_H_AFC

JVC

- 21 "BSC25 - 0262
COL_B +115 V_AFC_NC_24V_GND_H_ABL_185V_ GND
JVC AV20NX
- 21 "JF0501 - 3241 / QQ0189 - 001
Col_B +115 v_ AFC_-12V_ +12 V_Gnd_HT_ABL_185v_GnN

FUJITEC lama

- BSC22 - 2314H
- JF0501-1903
- FCM14A032
- KFS 60844
COL_B +115 V_180V_16V_24V_H_GND_ABL_AFC_NC

PANASONIC

- TLF14695F/Alpha Gold
- TLF 15610 F
- TLF 15611 F
- KFS60844
Col_B + _Gnd_PS sink-_25v_Ht_185v_Abl_Nc_PS sink +
- 20 "TLF 4N052
Col_B +115 v_Nc_24v_H_180v_Gnd_Gnd (R2W 1 ohm) _16v_ABL
- ZTF N82014B
Col_B +140 v_Nc_ +16 v_Gnd_H_Gnd_ABL_-16v_ 180v
- 21 "G4GAM3F2

Col_B +90 v_180v_Nc_Nc_Nc_Nc_Abl_Gnd_Ht

Sansui
- JF0501 -1206
- JF0501-1204
COL_B +115 V_185V_16V_24V_H_GND_ABL_AFC_NC

LG
- 20 ": 6174 - 6006E
Col_185v_B +115 V_Gnd_-14v_ +14 v_Gnd_ABL_H_AFC
-21” BSC25-N1534 (Flat & Super Slim)
- 21” BSC25-N0329 (Flat & Super Slim)
- 21 "6174V-6006H (Flat & Super Slim)
- 21 "BSC24-3366J (Super Slim)
COL_185V_B +115 V_GND_Nc_24V_Nc_ABL_H_AFC
- 29 "6174Z - 5003A
Col_B +115 v_ +14 v_-14v_200v_Gnd_Nc_28v_ABL_H

LG ultra Slim
- 21 "BSC25-N0363
- 29 "BSC26-N2138
Col_B +115 V_ +14 V_-14V_200V (Video) _Gnd_Inner_26V_Abl_H

LG super slim
- 6174913002A
- BSC24-3366J
COL_185V_B +115 V_GND_Nc_24V_Nc_ABL_H_AFC

TOSHIBA

- 14 "TFB 4067 BD
- 21 "TFB 4125CH
- 21 "TFB 4213AG (Flat)
- 29 "TFB 4086A
COL_B +115 V_185V_GND_NC_24V_12V_ABL_H_AFC

Polytron / DIGITEC

-29” FUH29VH02

COL_B+_GND_185_185FAST_HEATER_NC_BCL_12+_-12

- 21” JF 0501- 19584
- 20 "FCM 20 B 061N
- 21 "JF 0501 – 19577

COL_B +115 V_GND_NC_185V_H_NC_ABL_ +12 V_-12V

- 21 "JF0501-195913
- 21 "FTK-21R011UN

Col_B +115 V_Gnd_185v_Nc_H_25v_Bcl_12v_Afc

Polytron lama

- 14 "fck 14A006
- 20 "FCM2015H
- 20 "FTK21R002
NC_NC_GND_185V_16V_H_24V_ABL_B +115 V_COL

SAMSUNG
- FSV 14A004
- FSV14A001
- FSV20A001
16,5 V_AFC_H_24/40V_180V_GND_NC_ABL_B +125 V_COL

-AA41-61153E TV 21”
- FOK14A001
- FSV-14A004C
- FSV-14A004H
- FSA-38031M
- FSA 173 B
- AA26-002101A

+16,5 V_NC_24V_H_-16V, 5_185V_GND_NC_ABL_B +125 V_COL

- 14/21 "Flat FOK14B001
Col_NC_B +123 V_NC_200V_Gnd_H_-16, 5V_ +16,5 V_ABL

TV Cina
- BSC 25 Z 603F
- BSC 25 - 4813A
- BSC 25 - N1003A
- BSC25 - N0608
TP1_COL_TP2_B +115 v_TP3_TP4_GND_H_ABL_NC (180V)

- BSC24-014001D
- BSC25-N0321
- BSC25-N1534
- BSC25-N1634
- BSC25-Z1003
- BSC25-Z2705
- BSC25-Z2706
- BSC25-N0313
- BSC25-F1125A

TP1_COL_TP2_B +115 v_TP3_TP4_GND_H_ABL_AFCTV Cina
- BSC 25 - 2004PR
COL_B +115 v_NC_AFC_GND_H_ABL_NC_TP1_TP2

- BSC24-01N4014K
- BSC25-T1010A
T1_COL_T2_B +115 v_T3_T4_GND_H_ABL_180V

SANYO
- 21 "L 40 B 15300 / L40B17100
- JF0501-32639 (SANYO SLIM 21 ")
COL _B +115 V_NC_185V_AFC_ABL_NC_LOW B_H_GND
SANYO SLIM FLAT 29 "

- BSC26-2629S part no: ILB4L40B07500
Col_B +140 v_Nc_Video 185v_Afc_Abl_Nc_Low B_H_Gnd
Tr Hor D2634

TCL

- 21 "BSC 25 - 0299D
- JF0501-1914
- BSC25 - 0231
- 21 "BSC25-0284C
- BSC 66G (124-3810)
- BSC25-0211
- JF0501-1909A
- JF0501-1214

185V_COL_AFC_B +115 V_12V_24V_ABL_GND_NC_H
TV Cina
- 29 "BSC26 - 3606A
Col_B +115 V_NC_AFC_GND_H_ABL_T1_T2_T3
TV Cina
- 29 "BSC28 - N2329
Col_TP2_B +115 V_GND_185V_NC_NC_ABL_H_AFC

TV SAMSUNG
- 29 "FUH29A001 (B + 135v)
- SAMSUNG FLAT SLIM 29 "JF0501 - 91911 (FQH29A003) (B +125 v)
- 21 "SLIM FQH21A004 / BSC25-0217G / AA26-00305A / FUH29A001B (S) (B +120 / 125V)
COL_NC_B +125 V_NC_200V_GND_H_-16, 5V_ +16,5 V_ABL

K ONKA
- 14 "BSC25-2023S
- 14 "BSC25 - 0106
- 21 "BSC25-2666S
- 20 "BSC25-0111
COL_185V_B +115 V_GND_AFC_14V_ABL_H_NC_NC

- 21 "BSC25-0146

Col_185v_B +115 _Gnd_Nc_Nc_Abl_Ht_Gnd_Afc

SONY

- 8-598-858-00
- 8-598-831-00
- 8-598-811
- 1-453-284-11
COL_B + _200V_H_GND_-13V_GND_ +13 V_NC_ABL

SONY Trinitron
- 29 "1-439-423-32

H1_H2_180v_B + _Col_14V_Abl_Nc_26v_Nc_Gnd

RCA
- 14 "6174Z - 8006A
B +110 _Col_6.5V_Gnd H_H_Abl_-12V_Gnd_180v_ +12 v

PHILIPS
- 29 "JF0501 - 9185
- BSC25 - N2319
- BSC25 - N2911
Col_B +125 v_180v_Afc_H_8v_12v_ABL_45v_Gnd

SANKEN
- 21 "BSC24-01N4004U
- JF0501 - 19959
- BSC25 - 0235A
- BSC25-N 0103
Col_ B +115 _ +14 V_-14V_Gnd_Ht_Afc_Abl_Nc_180

Mugia jadi manfaat

Sabtu, 09 Februari 2019

Lg 42pn4500

Plasma lg 42pn4500

Kerusakan dibagian y main cek semua fet, igbt dll ternyata yng rusak 30h2,rjp 30k2 fet 7n65 alhamdulilah langsung cling

Kamis, 31 Januari 2019

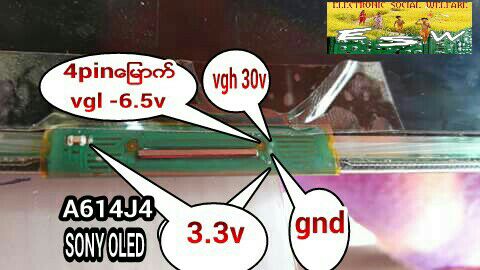

Data kupingan Lcd dan led part2

Data kupingan

Tonton ya Disini

NT39538H-C1272A

8656-F

RM76731FD

8651-A

NT39530H-C5203A

NT39563H-C6502A

NT39530H-C5204A

NT39565H-5263A

NT395665H-C5263

8656m c607

IDL 71087

...................................................................................................................................................................

NT39563H-C6502A

nt61267h/c1217b

...................................................................................................................................................................

SSD3272

ssd3272

.....................................................................................................................................................................

8698-c

..........................................................................................................................................................................
